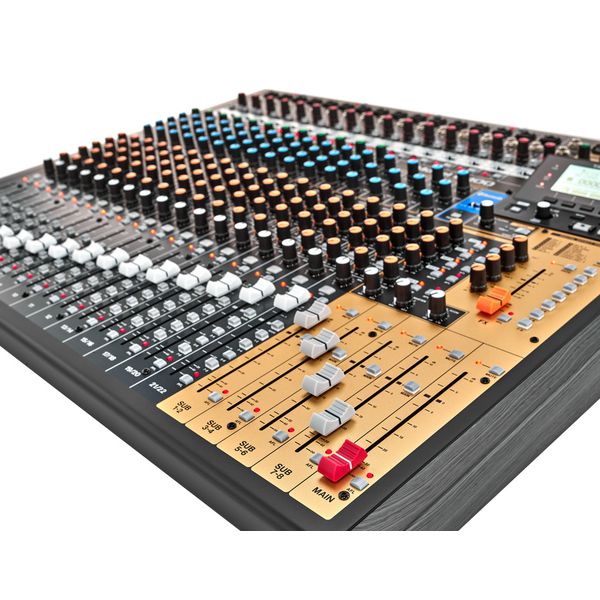

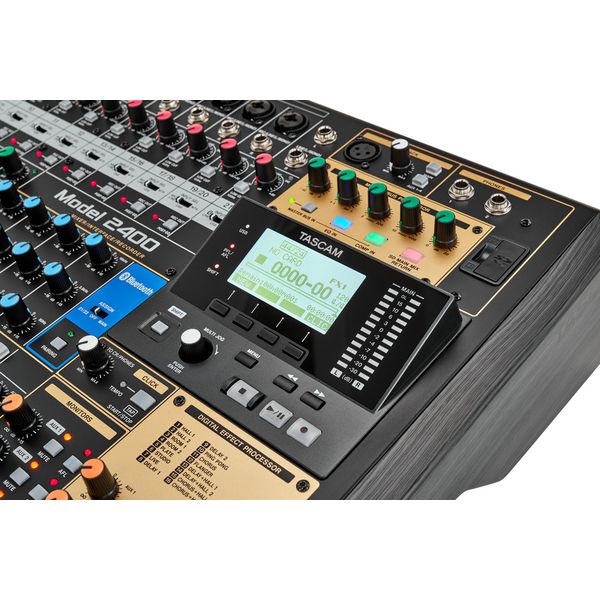

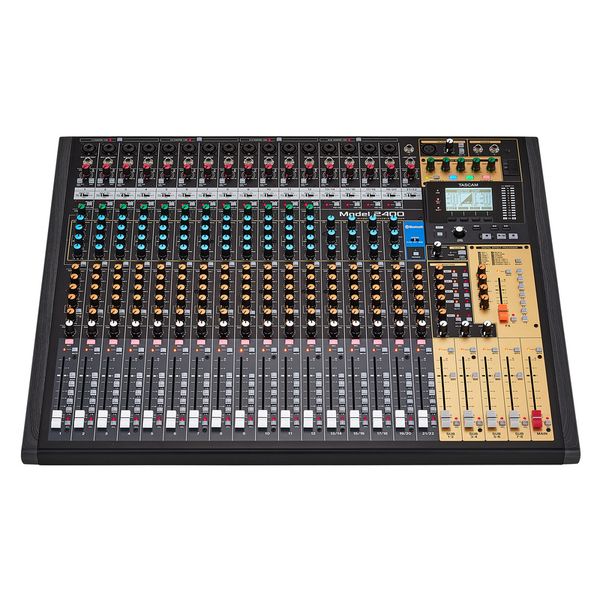

Analogmischpult mit Mehrspur-Recorder und USB-Audiointerface

  • 22 Eingänge - 22 Line-Eingänge, 16 Mikrofoneingänge
  • integrierter 24-Spur Recorder - 12 Mono- und 5 Stereo-Kanäle plus Stereosumme
  • USB-Audiointerface mit 24 Eingängen und 22 Ausgängen

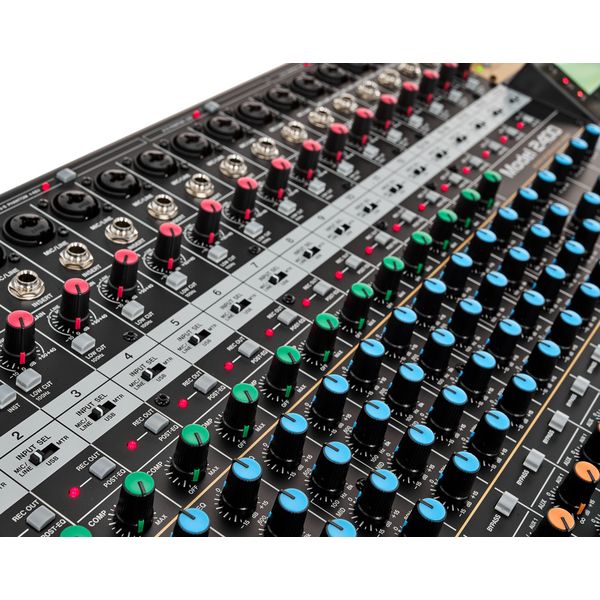

  • 12 XLR-Mikrofonvorverstärker mit Tascam Ultra-HDDA-Technologie für Kanäle 1–12
  • 5 Aux-Sends - 4 Aux plus interner Effekt
  • 4 Stereo-Subgruppen sowie Stereosumme
  • MIDI-In/Out mit MIDI-Synchronisation und Audio-Klick-Ausgang mit Temposteuerung
  • DAW-Steuerung für Transport und Aufnahme via HUI/MCU
  • Sends mit wählbarem Pre/Post-EQ-Routing
  • Phantomspeisung (+48 V) in Gruppen von 4 Kanälen wählbar
  • Einschleifwege (Send/Return) an den Eingangskanälen 1–12 sowie Stereosumme
  • 100Hz Low Cut-Filter, 1-Knob Kompressor sowie 3-Band-EQ (Kanäle 1-12)
  • integrierter Effektprozessor mit 16 Effekten (Reverb, Delay, Chorus uvm.) mit Fadersteuerung
  • digitaler 4-Band-EQ und Kompressor (Stereosumme)
  • PFL/AFL-Schalter mit LED-Anzeige in allen Eingangs- und Ausgangskanälen
  • Bluetooth-Empfänger für kabellose Stereoquellen(unterstützt AAC- und SBC-Codec)
  • Aufnahmemedien: SD-, SDHC-, SDXC-Karten (bis 512GB, Class 10 oder höher)
  • Aufnahme- und Wiedergabeformate: WAV (BWF-Format) 44,1 / 48kHz, 16Bit / 24Bit
  • 100 mm Fader
  • integriertes Netzteil
  • Abmessungen (B x H x T): 681 x 568 x 133mm
  • Gewicht: 14 kg

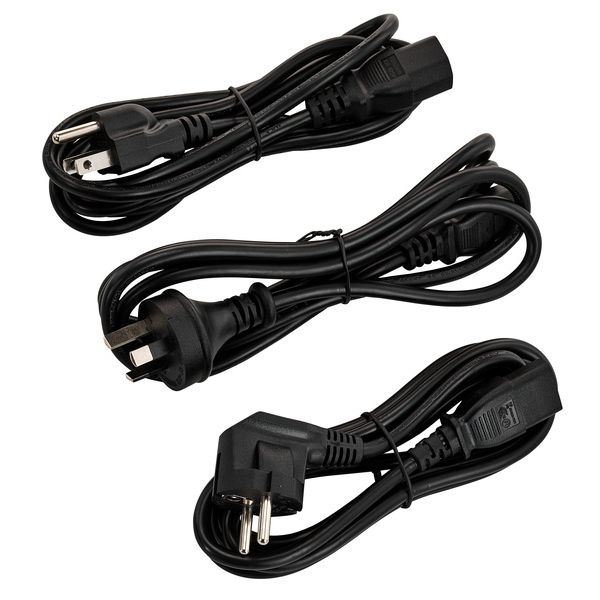

  • inkl. Netzkabel, Kurzanleitung, Registrierungsanweisung

Anschlüsse:

  • 16x Combo-Eingang Mic/Line (XLR/Klinke)
  • 22x Line-Eingang (6,3 mm Klinke)
  • 1x Talkback-Mikrofoneingang (3-polig XLR, symmetrisch)
  • 1x Footswitch-Eingang (6,3 mm Klinke)
  • 1x Stereo Main-Ausgang (3-polig XLR, symmetrisch)
  • 2x Stereo-Kopfhörerausgang (6,3 mm Klinke)
  • 1x Stereo Control Room-Ausgang (6,3 mm Klinke, symmetrisch)
  • 4x Stereo Sub-Ausgang (6,3 mm Klinke)
  • 5x Aux-Ausgang (6,3 mm Klinke, symmetrisch)
  • 1x MIDI In/Out (5-Pin DIN)
  • 1x Metronom Ausgang (6,3 mm Klinke)
  • 1x USB 2.0 Typ-B-Buchse
  • Erhältlich seit August 2024
  • Artikelnummer 596800
  • Verkaufseinheit 1 Stück
  • zeitgleich verwendbare Kanäle 22
  • Mic-In 16
  • Stereo-In 5
  • Master Out XLR
  • Anzahl Pre Aux maximal 2
  • PC-Schnittstelle USB-B
  • Multitrack-Recording Ja
  • USB/SD Direct Record SD
  • PFL Ja
  • Effekt Prozessor 1
  • USB Play Ja
  • Bluetooth Play Ja
  • Fußschalter Schalter
  • Matrixmixer Nein
  • Zonen 0
  • 19" Rackmount Nein
  • Breite 681 mm
  • Tiefe 568 mm
  • Höhe 133 mm
  • Gewicht 14 kg
  • Mono Line-in 16
  • Hi-Z Input 2
  • Phantom Power 48V
  • Auxwege 5
  • Audio Interface Input 24
  • Interface Input 24
  • Interface Output 22
  • Audio Interface Output 22
  • USB/SD Direkt Record SD
  • Low Cut Ja
  • Insert Ja
  • Parametric Ja
  • Parameteric Ja
  • Kompressor Ja
  • Panorama Ja
  • Lampen Anschluss Nein
  • Tasche Nein
  • Rackmount Nein
B-Stock ab 1.729 € verfügbar
2.009 €
Alle Preise inkl. MwSt.
Sofort lieferbar
Sofort lieferbar

Dieses Produkt ist auf Lager und kann sofort verschickt werden.

Informationen zum Versand
1

2 Kundenbewertungen

5 / 5

Sie müssen eingeloggt sein, um Produkte bewerten zu können.

Hinweis: Um zu verhindern, dass Bewertungen auf Hörensagen, Halbwissen oder Schleichwerbung basieren, erlauben wir auf unserer Webseite nur Bewertungen von echten Usern, die das Equipment auch bei uns gekauft haben.

Nach dem Login finden Sie auch im Kundencenter unter "Produkte bewerten" alle Artikel, die Sie bewerten können.

Bedienung

Features

Sound

Verarbeitung

2 Rezensionen

D
Das schweizer Messer für's Homerecording
Denis5254 14.05.2025
Der Hauptgrund für die Anschaffung des Model 2400 war, das ich mich unabhängig von einer DAW machen wollte.
Ich habe zugegebenermaßen noch nicht alle Funktionen ausprobiert und verwendet, aber die Grundfunktionen sind weitgehend intuitiv zu ergründen. Die Vorstufen und AD/DA Wandler sind sehr gut und die 48 Khz sind für meine Zwecke völlig ausreichend.
Alle Bedienelemente sind übersichtlich angeordnet und leicht zugänglich. Die Schalter für die Phantomspeisung sind leider sehr nah an der Biegekante, ein versehentliches Schalten durch aufliegende Kabel oder Ähnliches nicht ausgeschlossen. Auch die Abstützung in einem Flight Case wird dadurch erschwert.
Ich empfehle, die für das 2400er erhältliche Staubschutzhaube gleich mit zu bestellen, es ist ein äußerst sinnvolles Zubehör. Ich habe mir dazu noch ein Flight Case anfertigen lassen, da ich mit der 24 Spur oft auch mobil arbeiten werde, z.B. um mit befreundeten Musikern ergänzende Aufnahmen zu machen. In der Kategorie Recording Mischpulte stellt das Modell 2400 die oberste Spitze dar, es gibt (zur Zeit) keine Alternative.
Den Punkt Abzug in der Verarbeitung habe ich gegeben, für die dicht an der Biegekante gelegenen Schalter für die Phantomspeisung und die lediglich aufgelöteten Potis. Mit der Frontplatte verschraubte Potis sind aber in dieser Preisklasse auch nicht zu erwarten. Da muss man halt etwas feinfühliger im Umgang sein. Für mich stellt das aber kein Problem dar.
Insgesamt ist das Modell 2400 für mich das schweizer Ofiziersmesser im gehobenen Homerecording Studio.
Bedienung
Features
Sound
Verarbeitung
1
0
Bewertung melden

Bewertung melden

google translate gb
Leider ist ein Fehler aufgetreten. Bitte wiederholen Sie diese Aktion später.
M
An amazing Value for money solution for small studios and llive recording situations
MikeMi 23.01.2025
For quite some time I was searching for a solution for my small studio. My setup considers of a set of Synthesizers and microphones that I need to have them all connected somewhat permanently, so I was searching for something with a lot of inputs all in one. I did an extensive research and I was between various small consoles from different manufactures. I have to say that in our day and age there are endless solutions in various price ranges but the problem I faced was that most of the consoles in the same price range were lacking some key feature that broke the deal for me. For example, not all consoles had all inputs as combo or some of them they only had half combo and the rest only mic level. That was a key factor for me because I have a lot of line level instruments.
After quite some back and forth between various models that I considered, I finally got the Tascam Model 2400.
I like the tactile analogue – what you see, you get – feeling. No menu diving’s no button pressings and endless search of parameters. Everything is there for you on the spot!!
One of the key features that are unique in my opinion, and I am using quite often is, the possibility to record the individual line compressor and EQ. That’s quite useful for jamming sessions that I need to have a somewhat ready to go multitrack that I can mix without too much menu diving in my DAW or even from the onboard SD card, I also use the console as a return and I mix in the console and export the stereo out, also very easy and useful. I used it also as an analogue summing mixer and worked liie a charm.
The Preamps are EXTREMELY clean but maybe someone will think that they are a bit in the weak side but I find out that the sweet spot for them is around -18 to -12 DBFS and they take any post boost, EQ and Compression extremely well without any additional noise. In the past with other interphases I was always targeting around -12 to -6 to get the same SNR
The one knob compressor is working remarkably well, is quite “musical” and I find myself using it all the time to shape things around in conjunction to the somewhat limited but quite nice EQ
Overall a sturdy heavy construction and the knob and fader feeling is quite nice.

I can’t say I have anything negative to say with the exception that I wish they also had direct out for each input. For whoever needs something like that I suppose you can work it around with the 5 Auxiliary out or the 4 Stereo Sub groups and of course in some ways you can also utilize some the 12 inserts if you want to connect to an analogue tape machine for tracking and mixing.

Overall a wonderful product for whoever needs a console with a lot of inputs, integrated interphase, onboard recording and of course the analogue feeling. I truly love it !!
